Die casting is a powerful and versatile manufacturing method used to produce precise, high-quality metal components.
By injecting molten metal into a reusable steel mold, or “die,” under high pressure, manufacturers can create complex parts with excellent dimensional accuracy and smooth surface finishes.
Die casting is widely used in industries such as automotive, aerospace, and electronics due to its efficiency and ability to produce intricate geometries at scale.
In this guide, we’ll explore every aspect of die casting, from the process itself to the benefits, limitations, and finishing techniques, helping you understand why it remains one of the most popular manufacturing methods.
What is Die Casting?
Die casting is a powerful method of making metal parts without machining.
The die casting process involves injecting molten metal under high pressure into a reusable steel mold, known as a “die.” Once the metal solidifies, the die is opened, and the finished part is ejected.
Die casting is ideal for creating complex, high-precision parts with consistent quality. Common materials used in die casting include aluminum and zinc – metals with low melting points that allow for efficient production.
The Die Casting Process
Die casting typically follows these key steps:

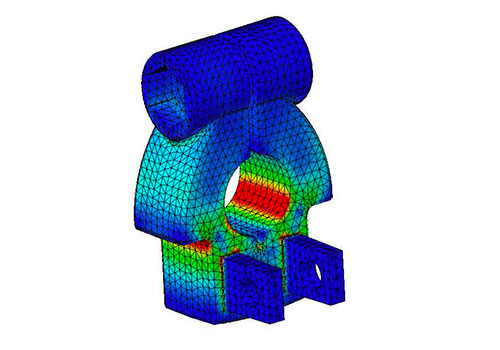

1. Design & Tooling: A 3D model is created to design the die / mould. It incorporates gates, vents, and ejector pins to ensure the proper flow and release of molten metal. At this stage, it is key to consider factors such as die fill, mechanical performance and ease of casting. This minimises the risk of issues later in the process such as cold welds and air pockets. A Finite Element Analysis can also be conducted to ensure mechanical strength is not undermined by casting flaws.
2. Injection: Molten metal is injected into the die at high pressure using either a hot or cold chamber machine, depending on the material.
3. Cooling: The metal cools and solidifies in the shape of the die cavity. It is key to ensure a consistent cooling rate in order to prevent defects or structural weakness in the final product.

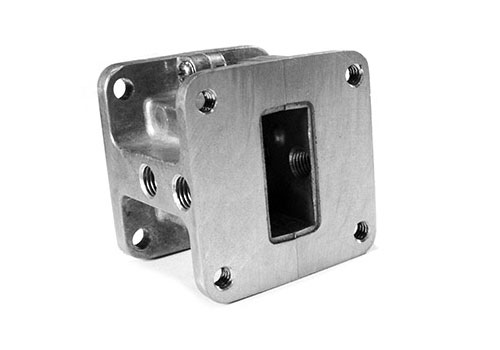

4. Ejection: The die is opened, and the part is ejected using pins built into the mould to assist in safely releasing the part without causing damage.
5. Finishing: Parts can undergo additional processes like trimming, polishing, or coating to achieve the desired finish and functionality.
Types of Die Casting

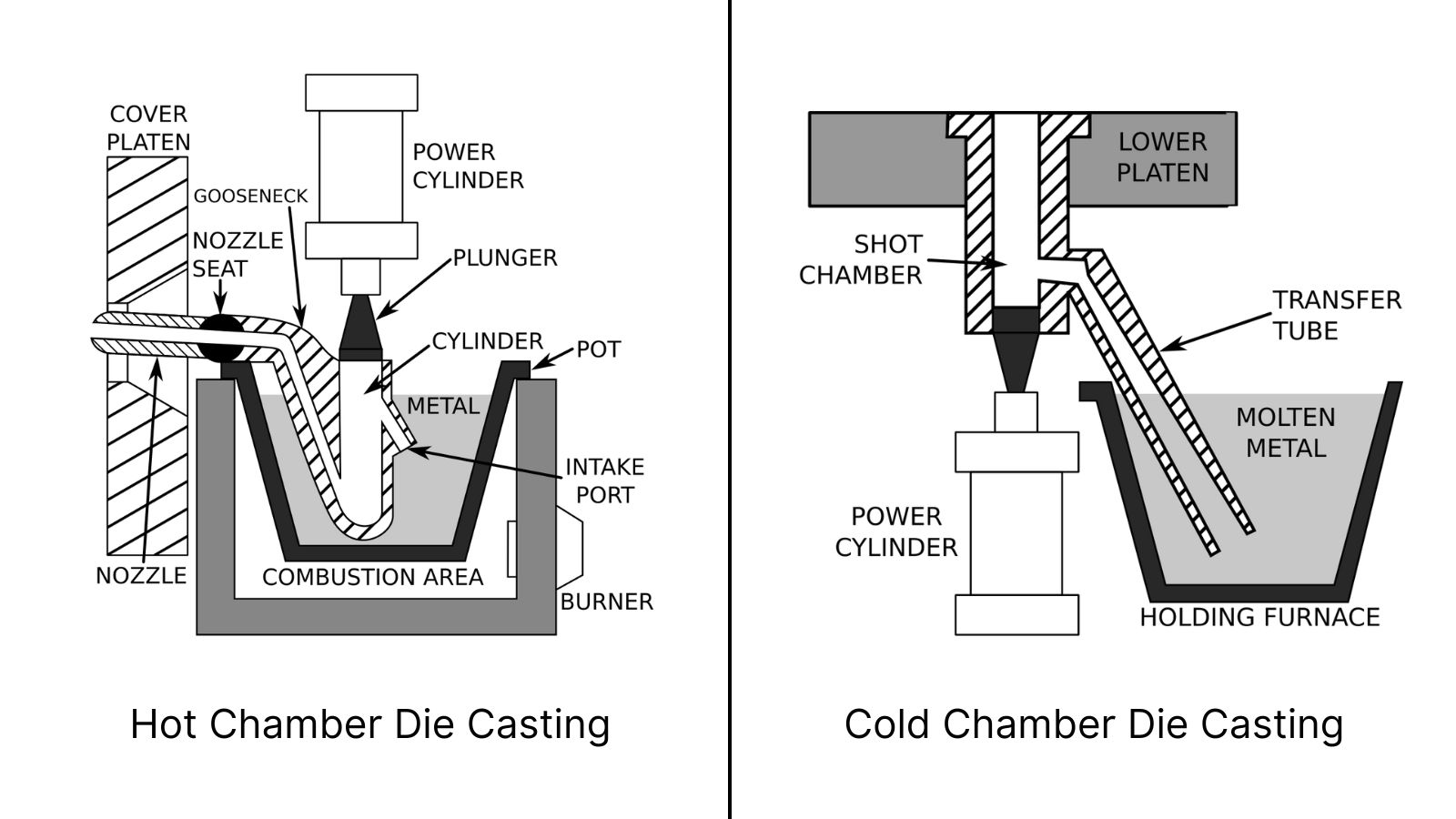

Die casting is performed using two primary methods – hot chamber and cold chamber die casting:
Hot Chamber Die Casting:
In hot chamber die casting, the metal is melted directly within the machine using an internal furnace. This setup allows for faster cycle times, making it a popular choice for mass production.
Molten metal is forced into the die cavity, and once the part solidifies, it is ejected, and the process repeats. This method is ideal for metals with low melting points. Its advantages include speed, longer die life due to lower operating temperatures, and improved corrosion resistance. However, it is unsuitable for high melting point metals.
Cold Chamber Die Casting:
Cold chamber die casting involves melting the metal in an external furnace and then transferring it to the casting machine. The molten metal is then injected into the die under high pressure by a hydraulic piston.
By using an external furnace, higher temperatures can be reached, enabling the use of metals with higher melting points, such as aluminum. Cold chamber die casting produces parts with excellent strength and durability, making it ideal for demanding applications, however this comes at the cost of slower cycle times compared to hot chamber casting.
Benefits of Die Casting
Die casting provides several key benefits that separate it from other methods of manufacturing:
High Precision and Dimensional Accuracy
Die casting is renowned for its ability to create components with exceptional precision and dimensional accuracy.
The high-pressure injection of molten metal into a precisely engineered mould ensures that parts closely match the mould’s design, even in large production runs.This capability allows manufacturers to produce parts with tight tolerances, ensuring consistency and minimal variation between each component.
As a result, die casting is ideal for applications where uniformity and high-quality standards are essential, such as in automotive, electronics, and aerospace industries.
Fast Production for High Volumes
Once the die is designed and prepared, die casting offers rapid production of parts at scale, making it an ideal solution for high-volume manufacturing.
The process features fast cycle times, where the molten metal is injected into the mould, cooled, and ejected quickly, allowing for large quantities of components to be produced in a short period.
This speed, combined with automated systems, makes die casting an efficient choice for mass production, reducing lead times and ensuring a steady supply of components.

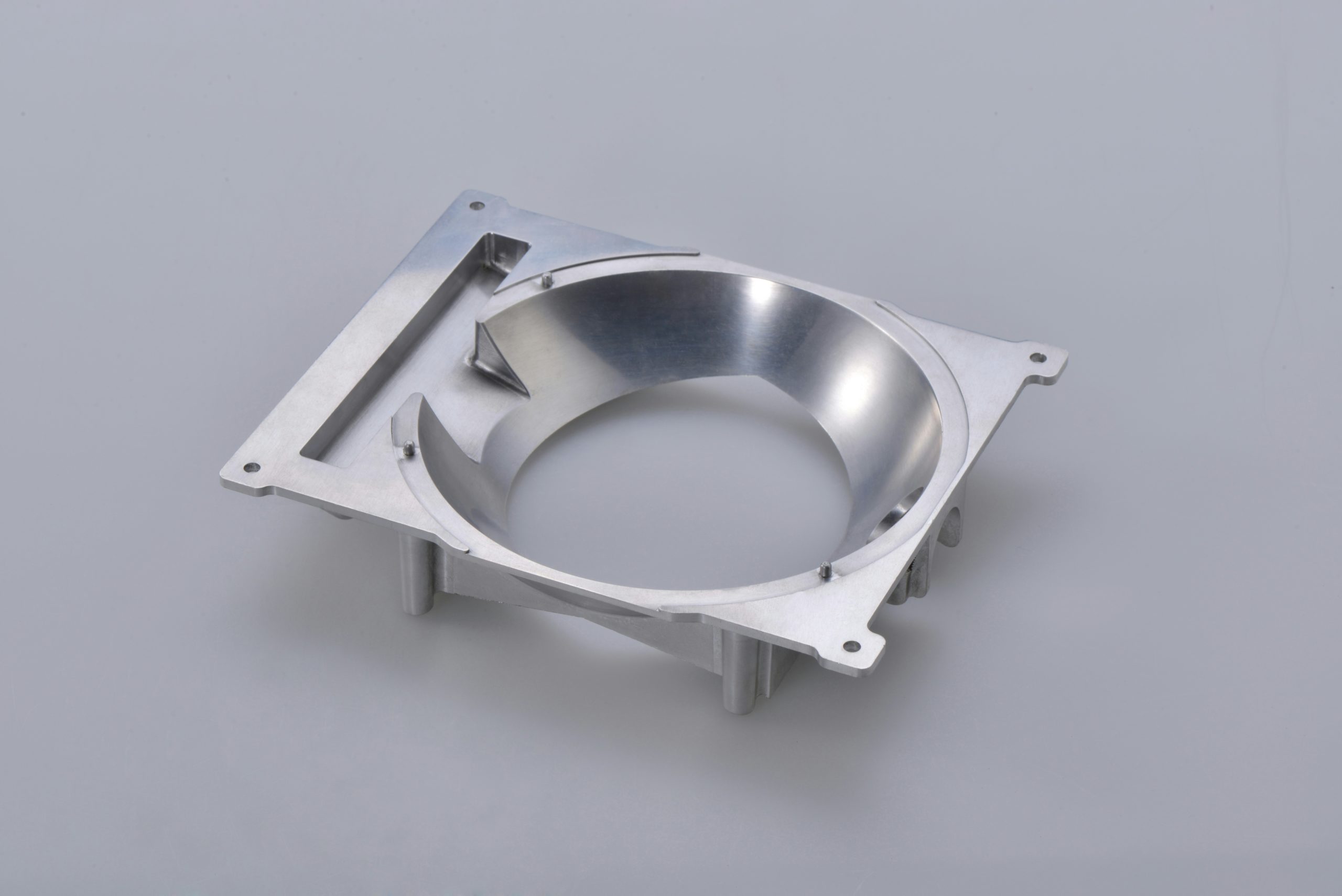

Complex Geometries
Die casting excels at producing parts with intricate and complex geometries that other manufacturing methods may struggle to achieve.
The high-pressure injection process enables the creation of components with thin walls, fine details, and intricate internal structures. These can include undercuts, internal channels, and complex surface textures. Die casting is highly versatile in this regard, allowing for the production of designs that would otherwise require additional assembly steps or multiple manufacturing processes.
This makes it especially suitable for industries that demand intricate, functional parts, like medical devices, automotive, and precision engineering.

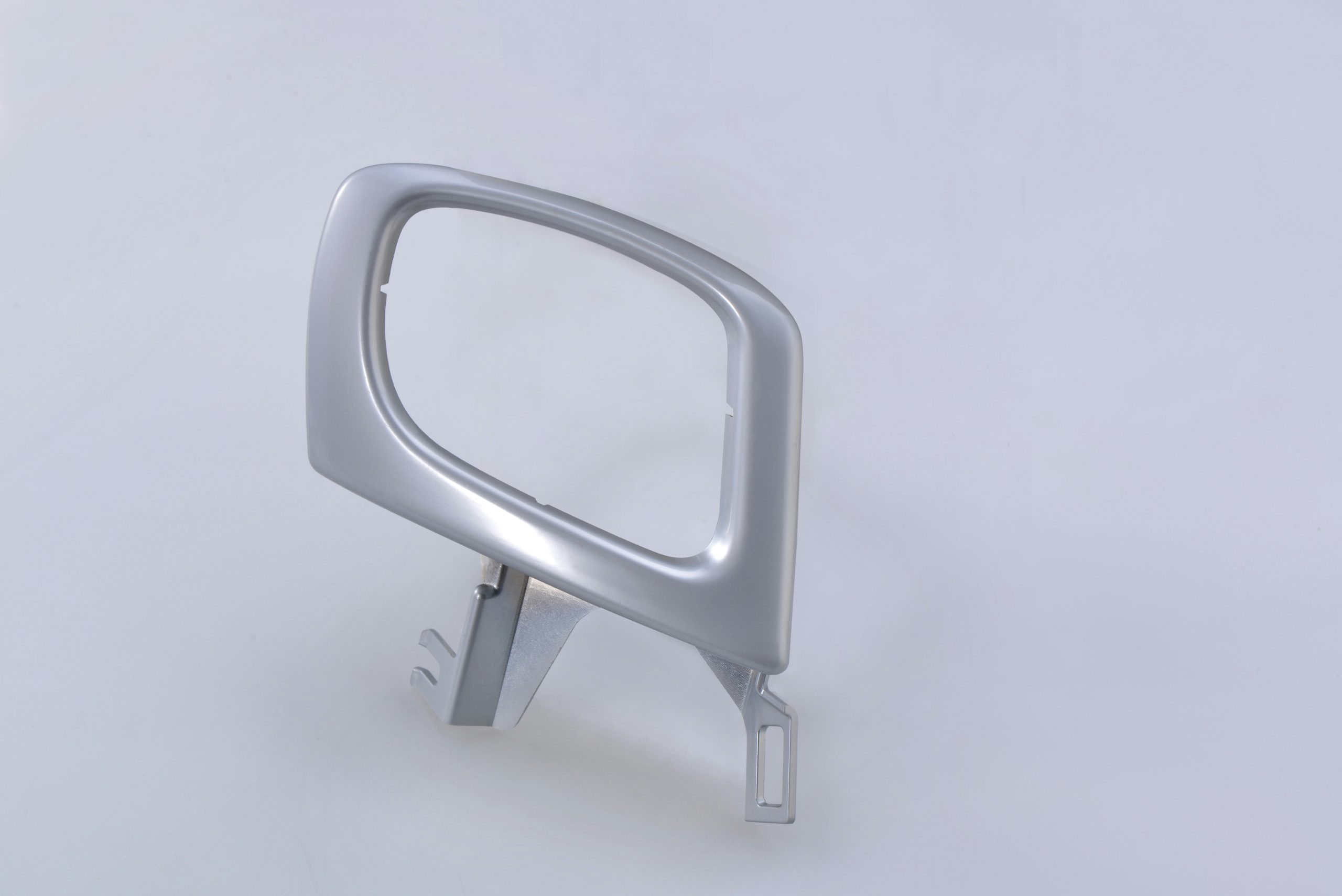

Smooth Surface Finishes
Die-cast parts have excellent surface finishes straight from the mould, often requiring little to no additional machining or finishing.
The smooth, fine surface quality achieved through high-pressure metal injection can reduce the need for secondary processes like grinding, polishing, or coating, which can be time-consuming and expensive.
Cost-Effective for Mass Production
While die casting does involve high initial tooling costs, the process becomes increasingly cost-effective as production volumes rise.
The re-usability of moulds and the speed of the cycle times mean that die casting can offer significant savings in material costs and labor for large production runs. Additionally, the reduced waste produced during the process helps to further drive down the cost per unit.
This makes die casting an economically viable choice for industries with large-scale production needs, such as automotive, where both cost efficiency and high-quality standards are critical.
Die Casting Limitations
Despite its many advantages, die casting does come with certain limitations that may impact its suitability for specific applications:
High Initial Tooling Costs
One of the most significant drawbacks of die casting is the high initial cost of designing and manufacturing the die. Tooling involves intricate engineering and machining to create a mould capable of withstanding the extreme pressures and temperatures involved in the casting process.
The upfront investment for custom dies can be substantial, making die casting less viable for low-volume or prototype production runs. While the cost per part decreases significantly with larger production volumes, companies looking to produce small quantities may find this initial investment prohibitive.
Material Restrictions
Die casting is typically limited to non-ferrous metals, such as aluminum and zinc, due to the specific requirements of the process. These metals have relatively low melting points, which are suitable for injection into moulds under high pressure.
High-melting-point metals can be problematic for die casting, as their high temperatures can cause rapid wear and tear on the mould. This results in shorter die life and increased maintenance costs.
Porosity Issues
One of the challenges in die casting is the potential for porosity, which occurs when gas is trapped inside the molten metal during the high-pressure injection process. This can lead to small voids or holes within the finished component, reducing the part’s overall strength and structural integrity.
Porosity can be especially problematic in parts that need to withstand high pressure or load-bearing conditions, such as those used in the automotive or aerospace industries. While various techniques can help reduce porosity, it remains a risk that requires careful monitoring and process control.
Not Ideal for Large Parts
Die casting is more efficient for producing smaller to medium-sized components, and the process can be less effective when it comes to larger parts. Due to size limitations in both the moulds and the die-casting machines, fabricating large components can be challenging.
The cooling times for larger parts are also significantly longer, which can slow down production and increase cycle times. Additionally, the stresses from the high-pressure injection process may cause distortion or defects in larger parts, further complicating their production.
Die Wear and Maintenance
The temperatures and pressures involved in die casting can lead to wear and degradation of the die over time. Each cycle of molten metal injection places stress on the die, leading to erosion and fatigue. This can result in the need for frequent maintenance or even complete replacement of the die, which adds to the long-term costs of the process.
Maintaining the die’s precision and quality is essential for producing high-quality components, but the wear over time may affect the consistency of the parts produced. Regular inspections, maintenance schedules, and occasional die refurbishment are necessary.
Die Casting Methods at Goudsmit UK
At Goudsmit UK, we offer a variety of casting processes to suit the specific needs of different industries and applications. From intricate components to high-volume production, we employ the most efficient techniques to ensure precision and quality.
High Pressure Die Casting
High Pressure Die Casting is ideal for producing high-volume, intricate parts with tight dimensional tolerances and superior surface finishes. This process is particularly essential in industries such as automotive, consumer electronics, and household appliances, where both precision and aesthetic appeal are paramount.
By applying high pressure, the molten metal is forced into complex molds, ensuring perfect replication of the design and resulting in parts that meet the highest standards of performance and mechanical properties.
Low Pressure Die Casting
Low Pressure Die Casting is perfectly suited for manufacturing parts that require a balance of surface quality and dimensional stability, such as automotive components like wheels and engine parts.
Using controlled pressure, this method ensures that molds are filled evenly, producing parts with superior mechanical properties and high attention to detail. This process is trusted by industries requiring both precision and durability.
Sand Casting
Goudsmit UK’s sand casting process offers exceptional flexibility and adaptability for producing large, intricate components. Known for its cost-effectiveness, it is frequently used in industries like automotive and heavy machinery where complex shapes and large sizes are required.
The ability to cast parts that may be impractical with other methods makes sand casting an essential technique for projects with unique geometries.
Lost Wax Casting (Investment Casting)
Also known as investment casting, lost wax casting is a precision technique that allows for the creation of parts with intricate geometries and high dimensional accuracy.
Goudsmit UK uses this process for components in aerospace, medical, and jewellery industries, where precision and detailed designs are crucial. Lost wax casting is ideal for producing parts that are too complex for other casting methods.
Gravity Die Casting
Gravity Die Casting is a preferred method for producing parts that require exceptional strength and dimensional accuracy. It is often used in the aerospace and defence sectors, where the reliability and structural integrity of components are critical.
By using gravity to fill the molds, this process ensures high-quality castings that deliver durability and precision for demanding applications.
Die Casting Finishing Processes
A variety of finishing options are available to refine a part’s appearance and address natural imperfections left from the casting process. Marks such as ejector pin witnesses, flash, and split lines are inevitable but can be reduced through careful finishing techniques.
1. Clipping
Clipping is often overlooked in the finishing process, but it plays a critical role in ensuring a high-quality final product. This step involves removing excess metal from the part, either mechanically or hydraulically, by trimming away the feed and vent system. While the goal is to achieve a clean cut, the outcome largely depends on the part’s geometry.
Certain alloys, due to their crystalline structure, don’t break as cleanly as materials like mild steel, which can leave visible marks or “witness” on the surface. To address this, it’s sometimes necessary to leave a small amount of witness material after clipping and then refine the part using CNC machining for optimal precision and a smooth finish. This approach ensures the part meets both structural and cosmetic requirements.
2. Primary Finishing
Once the metal feed system has been clipped, additional processes are employed to address residual flash and other marks. Although these cannot be entirely removed, they can be minimized significantly. Shot blasting, bead blasting and vibratory tumbling are common techniques employed to modify the finish post cast.
3. Surface Finishing

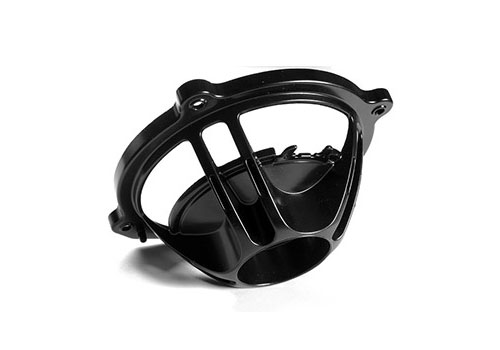

Die-cast parts can be finished with a variety of coatings to improve durability and aesthetics. Coatings range from metal to organic. Forms of plating such as nickel are common. Generally, die castings do not anodise well but chromate conversions can be applied.
Powder coats can form a very good cosmetic finish changing both colour and hiding some of the process witness. Finally, die castings do age with time and can become darker due to oxidation, therefore it’s important to opt for a cosmetic finish of some description.
Finally, it’s worth noting that untreated die-cast parts may darken over time due to oxidation. Choosing the right finish can prevent this, ensuring the part retains its desired appearance and durability over its lifecycle.
Applications of Die Casting
Die casting is used across numerous industries, including:
- Automotive:
Die castings are essential in the automotive sector, where they are used to manufacture critical components like engine blocks, crankshafts, and pistons. Metals such as aluminum, magnesium, and zinc are commonly used to create parts that improve vehicle performance and lower emissions, contributing to environmentally friendly vehicle production. - Defense:
In the defense industry, die casting provides parts for military vehicles, gear, and firearms that operate in extreme conditions. Components such as trigger guards, pistol grips, and joysticks for drones are made using die casting, ensuring precision and reliability under harsh environmental factors. - Renewable Energy:
Die casting enables the production of components for renewable energy systems, including wind turbines and solar panels. Parts like the hubs of windmills, made from steel alloys or aluminum, ensure strength, durability, and long-lasting performance in these vital energy-generating systems. - Agriculture:
In agriculture, die-cast components are critical for producing durable farming equipment. Cast parts such as frames, cylinders, gear casings, and housings are made from materials like cast iron and steel, offering the strength needed to withstand harsh conditions while improving productivity. - Medical:
Die casting is widely used in the medical sector to manufacture highly precise parts for devices like pacemakers, ultrasound systems, and patient monitoring systems. This process allows for the production of intricate, high-performance components crucial for medical technology. - Mining:
In mining, die-cast components are used to create durable parts for heavy equipment, including eccentrics for crushers, clamping rings, and wheel hubs for large mining trucks. These parts endure extreme wear and tear, making die casting an ideal choice for the industry’s rigorous demands.
