    Neodymium Magnet Applications: A Complete Guide to Neodymium Magnets

    Neodymium Magnets Applications

    Neodymium magnets, also known as NdFeB magnets, are the most powerful permanent magnets available today. Made from an alloy of neodymium, iron, and boron, these high-strength magnets have revolutionised various industries due to their strength and versatility.

    This guide explores the various uses and applications of neodymium magnets.

    What Are Neodymium Magnets?

    Neodymium magnets are part of the rare earth magnet family and are composed of neodymium (Nd), iron (Fe), and boron (B). Developed in the 1980s by General Motors and Hitachi, these magnets have become increasingly popular due to their exceptional magnetic properties, including a high magnetic field strength and a strong resistance to demagnetisation.

    Their compact size and lightweight nature means they are used in a huge range of applications. You probably use neodymium magnets several times a day without realising it, as they are embedded in your smartphone, personal computer, and car.

    Key Characteristics of Neodymium Magnets

    The key characteristics that make neodymium magnets so popular are:

    • High Magnetic Strength: Neodymium magnets have a high energy product, which allows them to produce a strong magnetic field in a small volume.
    • Temperature Resistance: While they perform optimally at room temperature, special grades can withstand elevated temperatures, making them suitable for various industrial applications.
    • Corrosion Resistance: Neodymium magnets can be susceptible to corrosion, but coatings such as nickel or epoxy can enhance their durability and longevity.

    What Are Neodymium Magnets Used For?

    Electronics

    Neodymium magnets are extensively used in electronic devices due to their compact size and strength. Common applications include:

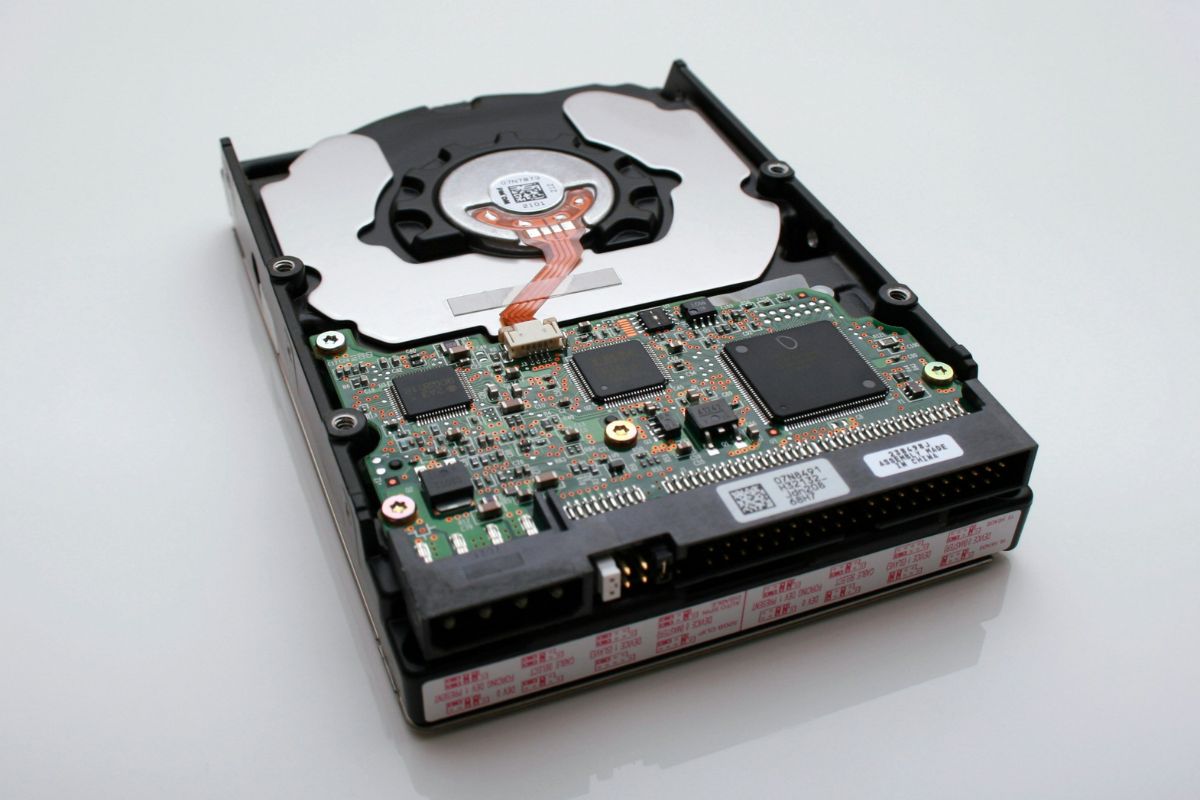

    Hard Disk Drives: A hard disk drive records data by magnetising and demagnetising a thin film of ferromagnetic material on a disk. Neodymium magnets help position the read/write heads with precision and are also used in the actuator that moves the head into position. Each disk is divided into tracks and sectors, with each sector containing numerous magnetic cells. The read/write head, driven by the actuator, magnetises these cells to store data.

    Audio Equipment: From speakers and microphones to headphones, neodymium magnets are crucial for converting electrical signals into sound and vice versa, providing high-quality audio reproduction. In speakers, they work with a current-carrying coil to move the speaker cone, while in microphones, they help generate electrical signals from sound waves. The interaction between the permanent magnet and the coil in speakers and microphones ensures efficient energy conversion, allowing for precise sound reproduction and capture.

    Medical

    MRI Machines: Neodymium magnets are used in MRI machines to generate the strong magnetic fields necessary for detailed internal imaging. Many ‘open’ MRI machines use large neodymium magnets to help align the protons in the body for imaging. MRI scanners produce a magnetic field that aligns hydrogen protons in the body. Radiofrequency waves are then applied, causing these protons to emit signals that are used to create detailed images.

    Neurological Applications: Neodymium magnets are crucial in Repetitive Transcranial Magnetic Stimulation (rTMS) for treating major depression. This non-invasive therapy uses magnetic fields to stimulate nerve cells in the brain, providing a treatment option without the need for anaesthesia. Research has shown that rTMS, powered by neodymium magnets, can significantly reduce symptoms of depression and improve patient outcomes.

    Orthopaedic and Bone Health: In orthopaedic medicine, neodymium magnets are used in bone implants to enhance healing and integration. Magnetic implants can stimulate bone growth and improve stability, as seen in studies where they reinforced bone tissue in animal models.

    Automotive Industry

    Neodymium magnets play a crucial role in the automotive sector, contributing to improved efficiency and performance:

    Electric Motors: Essential for the operation of high-performance electric motors in electric vehicles (EVs), these magnets enable better torque and efficiency. Neodymium magnets in motors provide high power density, allowing for compact and lightweight designs without compromising performance.

    ABS Sensors: Used in anti-lock braking system (ABS) sensors, neodymium magnets help monitor wheel speed by generating a voltage as the ABS reluctor ring rotates, enhancing vehicle safety and functionality. The interaction between the rotating reluctor ring and the stationary sensor with neodymium magnets produces a variable voltage that corresponds to wheel speed, informing the ABS system.

    Car Components: Permanent magnet devices in cars include motors for windshield wipers, oil pumps, windows, and door locks, offering silent and efficient operation.

    Industrial Applications of Neodymium Magnets

    Magnetic Separators: These magnets are used in recycling and waste management to separate ferrous materials from non-ferrous materials, improving processing efficiency. They are integral to conveyor systems and magnetic filter rods. Magnetic separators utilise strong magnetic fields to attract ferrous particles from a mixture, ensuring the purity of processed materials.

    Lifting Machinery: In heavy engineering and manufacturing, neodymium magnets are used in lifting equipment to handle large ferrous items. Switchable release magnets provide a quick-release mechanism for safety and convenience. Switchable magnets use neodymium magnets arranged in a way that their magnetic field can be turned on or off, enabling secure lifting and easy release of heavy objects.

    Magnetically Coupled Pumps: Magnetically coupled pumps use magnets to move the impeller without direct contact. A motor-driven shaft with magnets spins another set of magnets on a separate shaft, which drives the impeller. This design prevents wear and tear, and if the impeller gets blocked, the motor continues to run without damage, making the pump more durable and reliable.

    Consumer Products

    Magnetic Tools: Neodymium magnets are incorporated into tool holders and magnetic strips for easy organisation and accessibility. They are also used in magnetic door catches and cabinet latches. The high strength of neodymium magnets allows them to hold heavy tools securely, making them ideal for workshops and garages.

    Jewellery and Accessories: Small neodymium magnets are used in clasps and fastenings for jewellery, ensuring a secure hold without bulky mechanisms. Their strength allows for sleek and minimalistic designs. Jewellery clasps with neodymium magnets provide a reliable yet easily detachable connection, enhancing both functionality and aesthetic appeal.

    Aerospace and Defence

    In the aerospace and defence industries, the reliability and strength of neodymium magnets are critical:

    Satellite Systems: Neodymium magnets are used in satellite systems to ensure proper orientation and stabilisation in orbit, which is vital for communication and data collection. Attitude control systems in satellites use neodymium magnets to interact with Earth’s magnetic field, stabilising and orienting the satellite.

    Military Equipment: Utilised in various military applications, including sensors, actuators, and communication devices, these magnets are valued for their performance and reliability. They are also used in radar systems and other advanced electronic systems. Neodymium magnets in military equipment provide precise control and reliable operation in harsh environments, ensuring the effectiveness of critical systems.

    Microwaves and Communications

    Neodymium magnets are essential in the field of microwave communication technology:

    Radar and Satellite Communication: They are used in radar technology, satellite communications, remote control telemetry, electronic tracking, and electronic countermeasures. High-frequency microwave devices rely on the magnetic properties of neodymium magnets to generate and manipulate electromagnetic waves for communication and sensing.

    Magnetron Tubes: These magnets are used in magnetron tubes, traveling wave tubes, and other devices essential for generating and directing microwave radiation. Magnetrons, essential components in microwave ovens and radar systems, use neodymium magnets to control electron flow and generate microwaves.

    Renewable Energy

    Neodymium magnets are key components in renewable energy technologies:

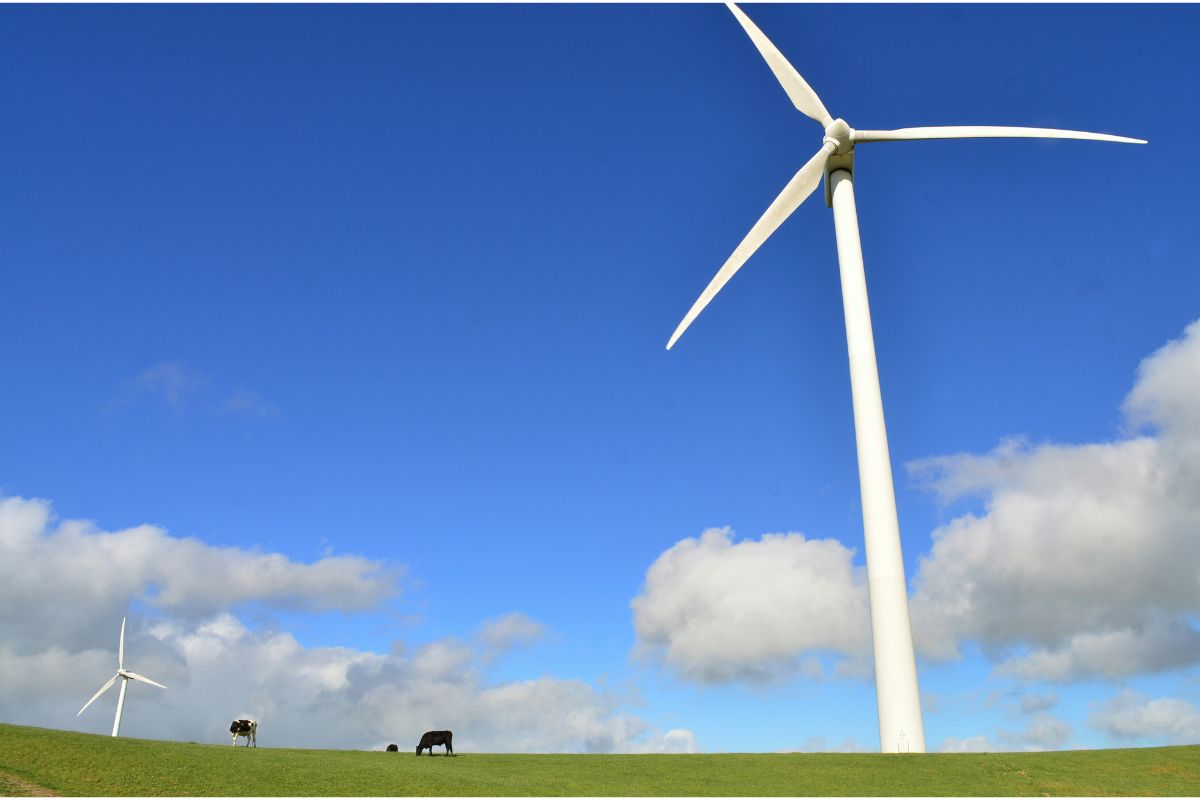

    Wind Turbines: High-efficiency permanent magnet generators in wind turbines utilise neodymium magnets to maximise energy capture and conversion, contributing to greener energy solutions. These magnets enable direct-drive systems in wind turbines, eliminating the need for gearboxes and reducing maintenance requirements. Learn more about the critical role of magnets in wind turbines.

    Solar Panels: In solar technology, these magnets are used in tracking systems to optimise the angle of solar panels for maximum sunlight exposure, enhancing energy efficiency. Magnetic sensors in solar tracking systems ensure precise alignment with the sun, increasing the overall energy output of solar panels.

    Electrical Engineering

    More than one-third of neodymium magnet output is used to manufacture various permanent magnet motors:

    Electric Bicycles and Elevators: Neodymium magnets are widely used in motors for electric bicycles and elevator traction machines due to their lightweight and high efficiency. The high power-to-weight ratio of neodymium magnets allows for compact and efficient motor designs in electric bicycles and elevators.

    Appliance Motors: Common in refrigerator air conditioner motors and other household appliance motors for their energy efficiency and compact size. Neodymium magnets enable energy-efficient motors that reduce power consumption in household appliances, contributing to lower energy costs and environmental impact.

    Magnetic Mechanical Engineering

    Neodymium magnets are used to produce various magnetic mechanical devices:

    Magnetic Gears and Brakes: These magnets are used in magnetic gears and brakes, which offer frictionless operation and reduced wear. Magnetic gears transmit torque without physical contact, reducing wear and maintenance requirements, while magnetic brakes provide reliable stopping power without friction.

    Magnetic Bearings: Used in high-speed applications where traditional bearings would fail, magnetic bearings utilise the repulsive forces of neodymium magnets to support moving parts without physical contact. Magnetic bearings enable high-speed rotation with minimal friction and wear, enhancing the performance and lifespan of rotating machinery.

    Transportation

    Maglev Trains: Neodymium magnets play a crucial role in the operation of maglev (magnetic levitation) trains. These advanced trains use magnetic forces to levitate above the tracks, significantly reducing friction and enabling exceptionally high speeds.

    The levitation is achieved through powerful neodymium magnets arranged either on the train or the track (or both) to create a magnetic field that lifts and stabilizes the train. For propulsion, maglev trains utilize these magnets to generate forward motion by interacting with magnetic fields produced along the track. This technology allows for smooth, frictionless travel at speeds that can exceed 300 miles per hour (480 kilometres per hour), making maglev trains a highly efficient and quiet mode of transportation

    Magnetic Separation Technology

    Magnetic separation technology involves the use of magnetic methods to separate ferromagnetic substances from non-ferromagnetic substances:

    Beneficiation and Coal Preparation: Used in the mining industry to separate valuable minerals from ore, enhancing the efficiency of the beneficiation process. Magnetic separators in mining use strong magnetic fields to attract and separate ferrous materials, improving the purity of extracted minerals.

    Water and Waste Treatment: Employed in water treatment plants and waste management to remove metallic contaminants, ensuring cleaner and safer outputs. Magnetic filtration systems in water and waste treatment capture ferrous particles, enhancing the quality and safety of treated water and waste materials.
